MTX300 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Single Core)
Applications
These unarmoured power & control cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free.
Standards
- IEC 60092-350/353/360
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

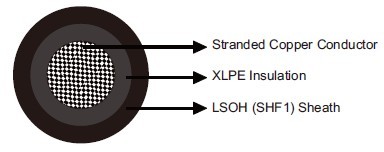

Construction
| Conductors |
Class 2 stranded copper conductor, round or sector shaped. |
| |
Class 5 stranded conductors can be offered upon request. |
| Insulation |
XLPE. |
| Outer Sheath |
LSOH (SHF1). SHF2 can be offered upon request. |
Core Identification
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6×OD (OD>25mm) |
| |
4×OD (OD ≤25mm) |
| Temperature Range |
-30℃ ~ +80℃ |
Dimensions and Weight
MTX300 1RZ1-R Single Core 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)
| Part No. |
Construction No. of cores×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm^2 |
mm |
mm |
mm |
kg/km |
| MTX300-1RZ1-R-1C1.5 |
1×1.5 |
0.7 |
1.0 |
5.0 |
40 |
| MTX300-1RZ1-R-1C2.5 |
1×2.5 |
0.7 |
1.0 |
5.4 |
50 |
| MTX300-1RZ1-R-1C4 |
1×4 |
0.7 |
1.04 |
6.0 |
70 |
| MTX300-1RZ1-R-1C6 |
1×6 |
0.7 |
1.04 |
6.6 |
90 |
| MTX300-1RZ1-R-1C10 |
1×10 |
0.7 |
1.04 |
7.5 |
130 |
| MTX300-1RZ1-R-1C16 |
1×16 |
0.7 |
1.04 |
8.5 |
190 |
| MTX300-1RZ1-R-1C25 |
1×25 |
0.9 |
1.1 |
10.4 |
295 |
| MTX300-1RZ1-R-1C35 |
1×35 |
0.9 |
1.1 |
11.7 |
380 |
| MTX300-1RZ1-R-1C50 |
1×50 |
1.0 |
1.2 |
13.3 |
510 |
| MTX300-1RZ1-R-1C70 |
1×70 |
1.1 |
1.3 |
15.5 |
720 |
| MTX300-1RZ1-R-1C95 |
1×95 |
1.1 |
1.3 |
17.4 |
970 |
| MTX300-1RZ1-R-1C120 |
1×120 |
1.2 |
1.4 |
19.4 |
1220 |
| MTX300-1RZ1-R-1C150 |
1×150 |
1.4 |
1.5 |
21.5 |
1505 |
| MTX300-1RZ1-R-1C185 |
1×185 |
1.6 |
1.5 |
23.8 |
1865 |
| MTX300-1RZ1-R-1C240 |
1×240 |
1.7 |
1.6 |
26.7 |
2420 |
| MTX300-1RZ1-R-1C300 |
1×300 |
1.8 |
1.7 |
29.6 |
3015 |
